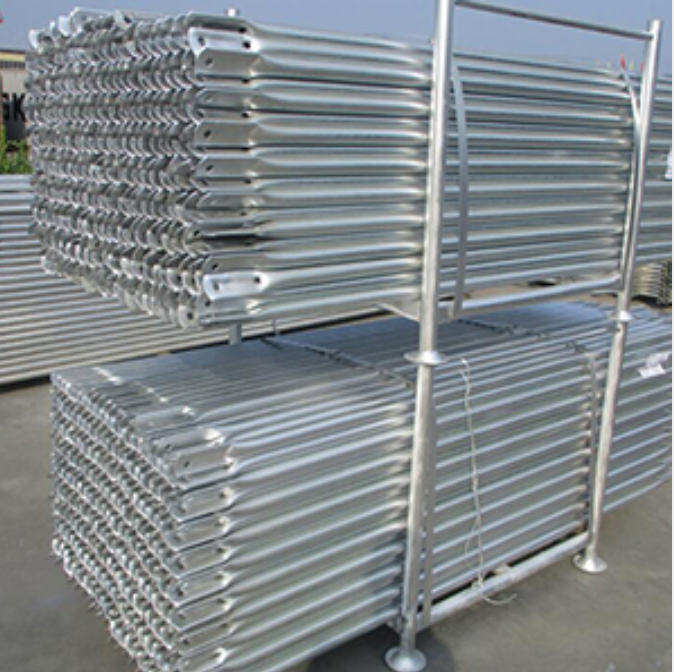

Diagonal Brace for Sidewalk Shed Bridge System

Diagonal Brace for Sidewalk Shed Bridge System

Sidewalk Bridge Components

1. Bridge Leg

Size	Weight	Finish
8' Bridge Legs	65 lbs	HDG / Powder Coated
10' Bridge Legs	72 lbs	HDG / Powder Coated
12' Bridge Legs	84 lbs	HDG / Powder Coated
14' Bridge Legs	95 lbs	HDG / Powder Coated
16' Bridge Legs	106 lbs	HDG / Powder Coated
20' Bridge Legs	128 lbs	HDG / Powder Coated

2. Horizontal Girth & Brace

Specification	Weight	Finish
1' Girt	1.7 lbs	HDG / Powder Coated
3' Girt	4.4 lbs	HDG / Powder Coated
8' Girt	12 lbs	HDG / Powder Coated
10'4'' Brace	10 lbs	HDG / Powder Coated

3. Corrugated Sheet

Size	Weight	Finish
8' x 33''	21.1 lbs	Galvanized
10' x 33''	26.3 lbs	Galvanized
12' x 33''	31.7 lbs	Galvanized

4. Junior Beams & Header Beams

Size	Weight	Finish
10' Junior Beam	73 lbs	Self-color
13' Junior Beam	97 lbs	Self-color
15' Junior Beam	108 lbs	Self-color
10' Header Beam W8X10	100.00 lbs	Self-color
10' Header Beam W10X13	130.00 lbs	Self-color
